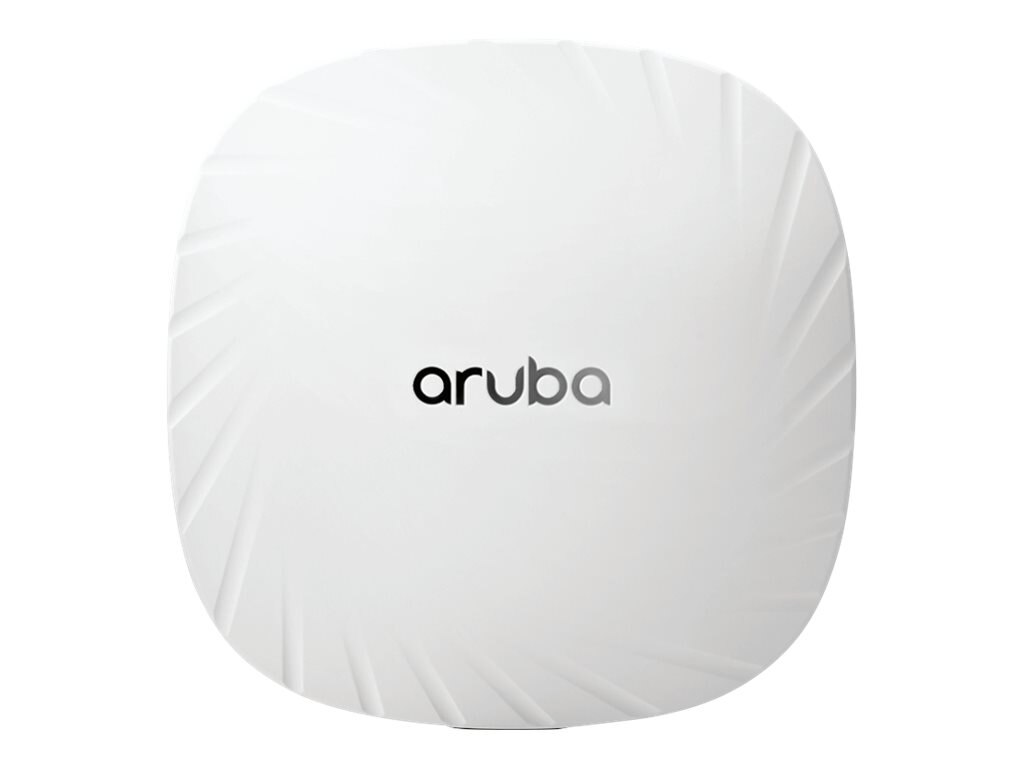

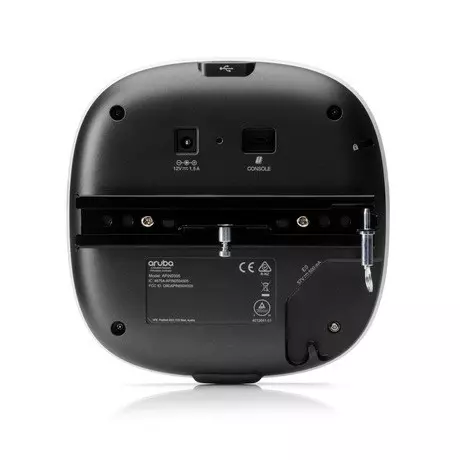

Aruba AP-505 (RW) Dual Radio 2×2:2 802.11ax Internal Antennas Unified Campus AP – R2H28A
1.49 Gbps maximum real-world speed (HE80/HE20)
Aruba AP-505 – R2H28A:
Aruba’s AP-505 is a cost-effective Wi-Fi 6 (802.11ax) for medium-density indoor environments. This Wi-Fi 6 access point provides high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements.
Features:
- WPA3 and Enhanced Open security
- Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
- OFDMA for enhanced multi-user efficiency
- IoT-ready Bluetooth 5 and Zigbee support
product specifications
0.5 kg
16.0 × 16.1 × 3.7 cm
HPE Aruba
R2H28A
Aruba AP-505 (RW) Dual Radio 2×2:2 802.11ax Internal Antennas Unified Campus AP
Indoor, Dual radio, 5GHz and 2.4GHz 802.11ax 2×2 MIMO
Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices
16 BSSIDs per radio
• 2.400 to 2.4835GHz
• 5.150 to 5.250GHz
• 5.250 to 5.350GHz
• 5.470 to 5.725GHz
• 5.725 to 5.850GHz
Dependent on configured regulatory domain
• Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
• POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or 4)
• 802.3az Energy Efficient Ethernet (EEE)
Capable of sourcing up to 1A / 5W to an attached device
• Without/with a USB device – 8.9W / 14.2W (DC) or 11.0W / 16.5W (PoE)
• Idle mode – 4.3W (DC) or 6.2W (POE)
• Deep-sleep mode – 1.7W (DC) or 3.7W (POE)
• Temperature: 0C to +50C / +32F to +122F
• Humidity: 5% to 93% non-condensing
• AP is plenum rated for use in air-handling spaces
• ETS 300 019 class 3.2 environments
• Temperature: -40C to +70C / -40F to +158F
• Humidity: 5% to 93% non-condensing
• ETS 300 019 classes 1.2 and 2.3 environments
White
1-year
